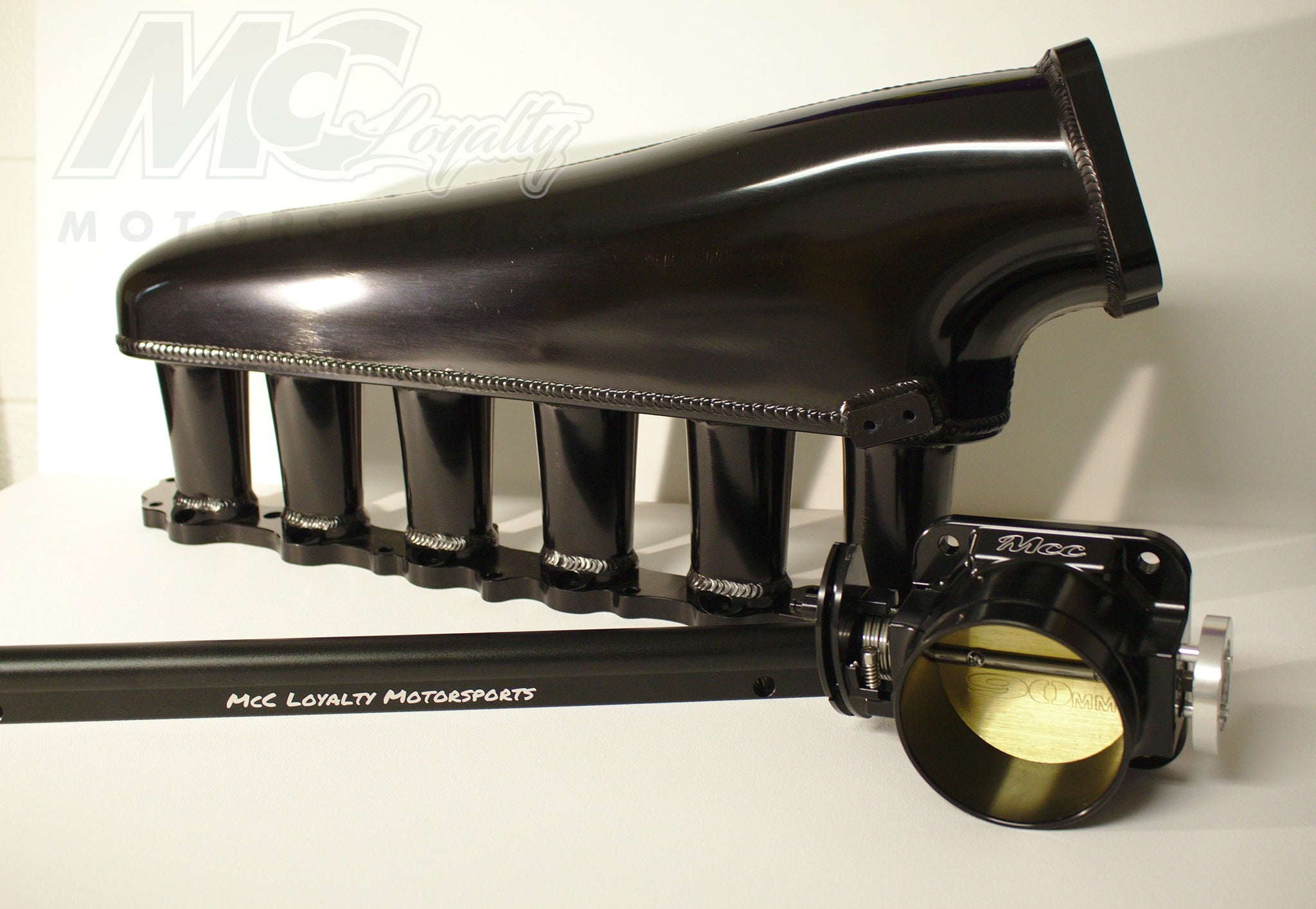

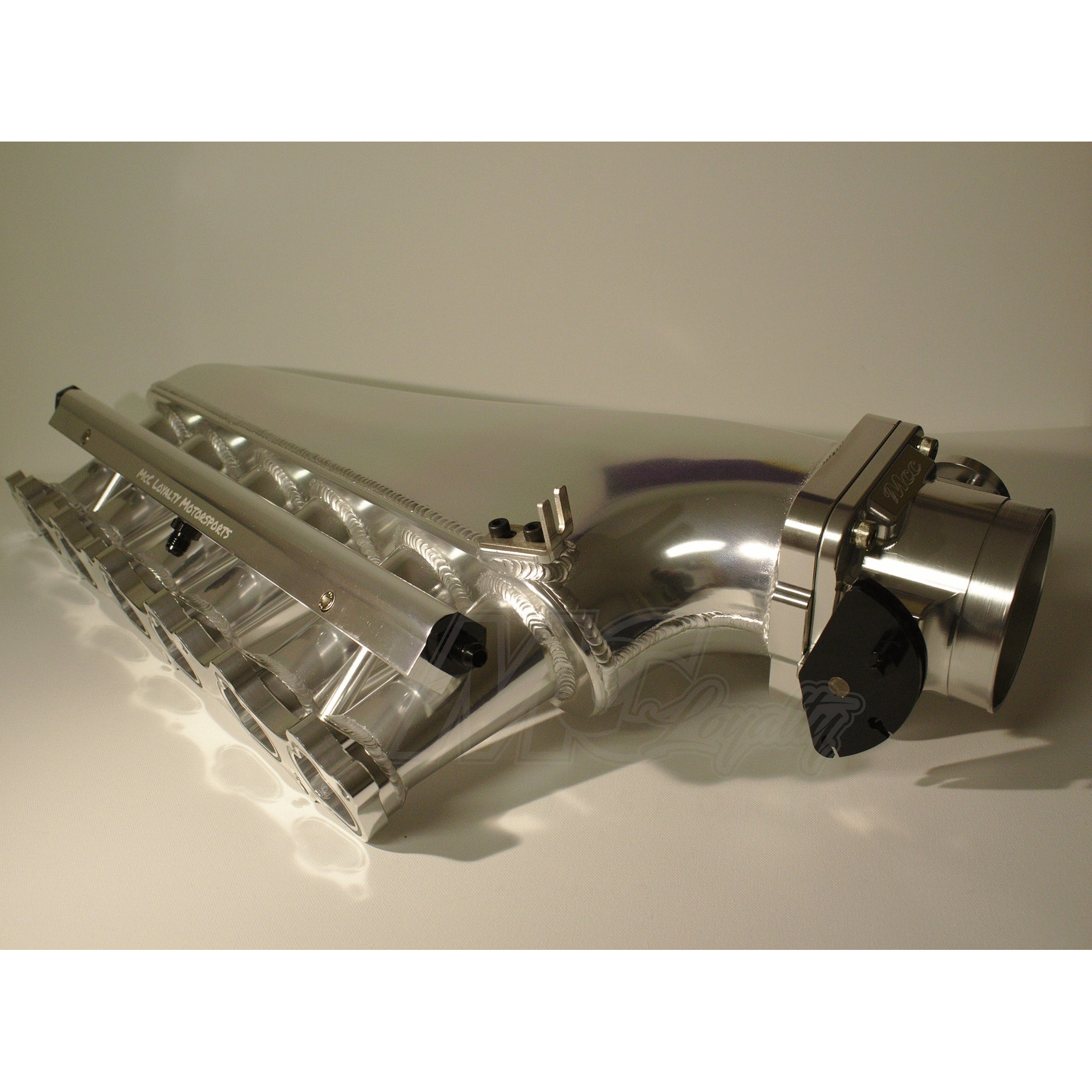

2JZ-GTE 2JZ-GE & 1JZ Intake Manifolds
-
Fuel Rail
14.14.60mm injector sizing
E85 Safe fuel rail
Capable of 1000+ hpCan run using dual feeds and center return, or with the center return blocked off
(Optional block-off fitting included) -
Billet CNC Machined Flanges
All mating flanges manufactured from billet aluminum using precise CNC machinery
O-ring grooves provide a robust and reliable seal to ensure high perfromance -
IACV and Vacuum Flanges
Manifolds include flanges for the stock Idle Air Control Valves to ensure trouble free cold starts
(Optional IACV Block-off Included)
Flange for 3X vacuum ports welded on the underside of the manifold for a clean look -
Annodized Finish
Contact us for Custom Colors (6+ Month Wait)All of Our Manifolds are E85 Safe Anodized
Silver and black options regularly stocked

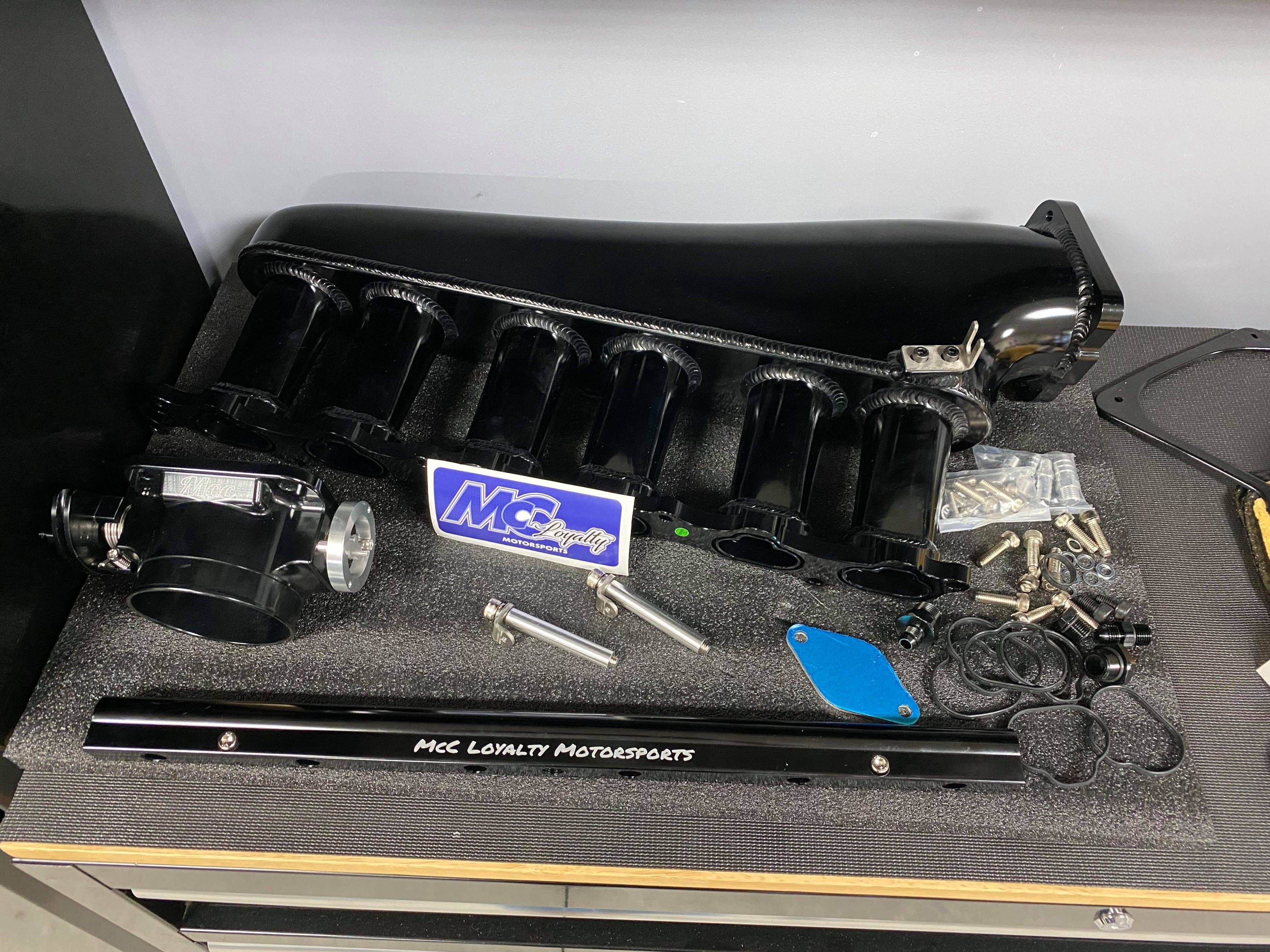

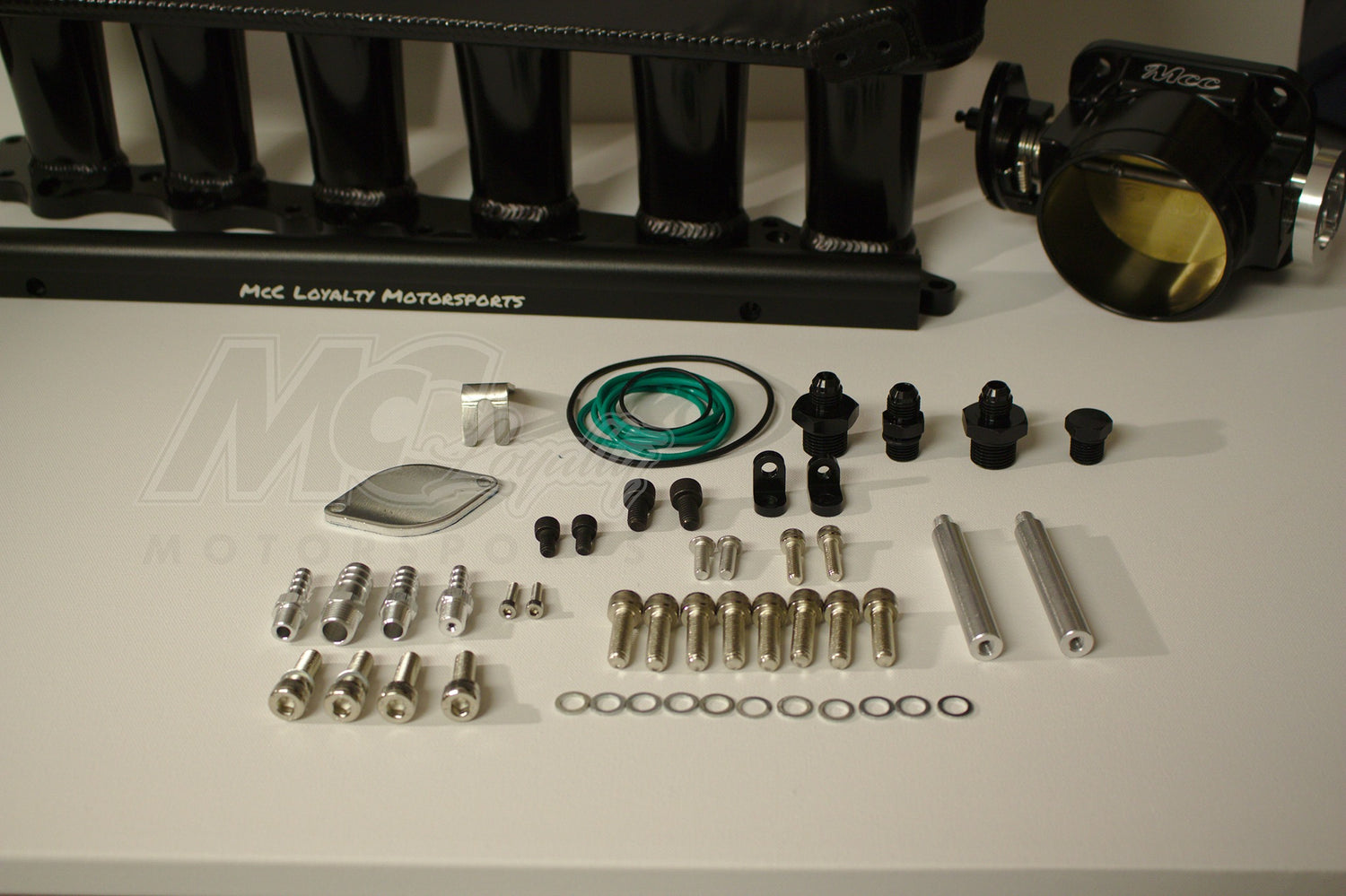

ACCESORIES INCLUDED
-Manifold to head mounting hardware and O-rings
-Throttle body to manifold mounting hardware and O-rings
-2x -6 AN fuel rail feed fittings, 1x -6 AN return fitting, 1x center return block off fitting (Installation optional) and fuel rail to manifold mounting hardware
-Throttle cable L bracket and fastners included
-Optional IACV blockoff included
INSTALLATION NOTES
These manifolds fit very well in MKIV Supras, SC300's, MKIII Supras and many more. Please veiw our Featured Builds section for fitment information and Contact Us with any installation questions.
Almost all installs require a longer throttle cable, 14.14.60mm Injectors, modification to the fuel system and the relocation of the vehicles battery & power-steering reservoir.
Some installations (typically 1JZ setups) the factory oil cooler will need to be removed or a smaller oil filter will need to be run.
Our Low Profile TPS sensor provides enough clearance in most cases to avoid relocation of the stock fuse box (SC300, MKIV Supra, & More)
Keep Scrolling to Purchase

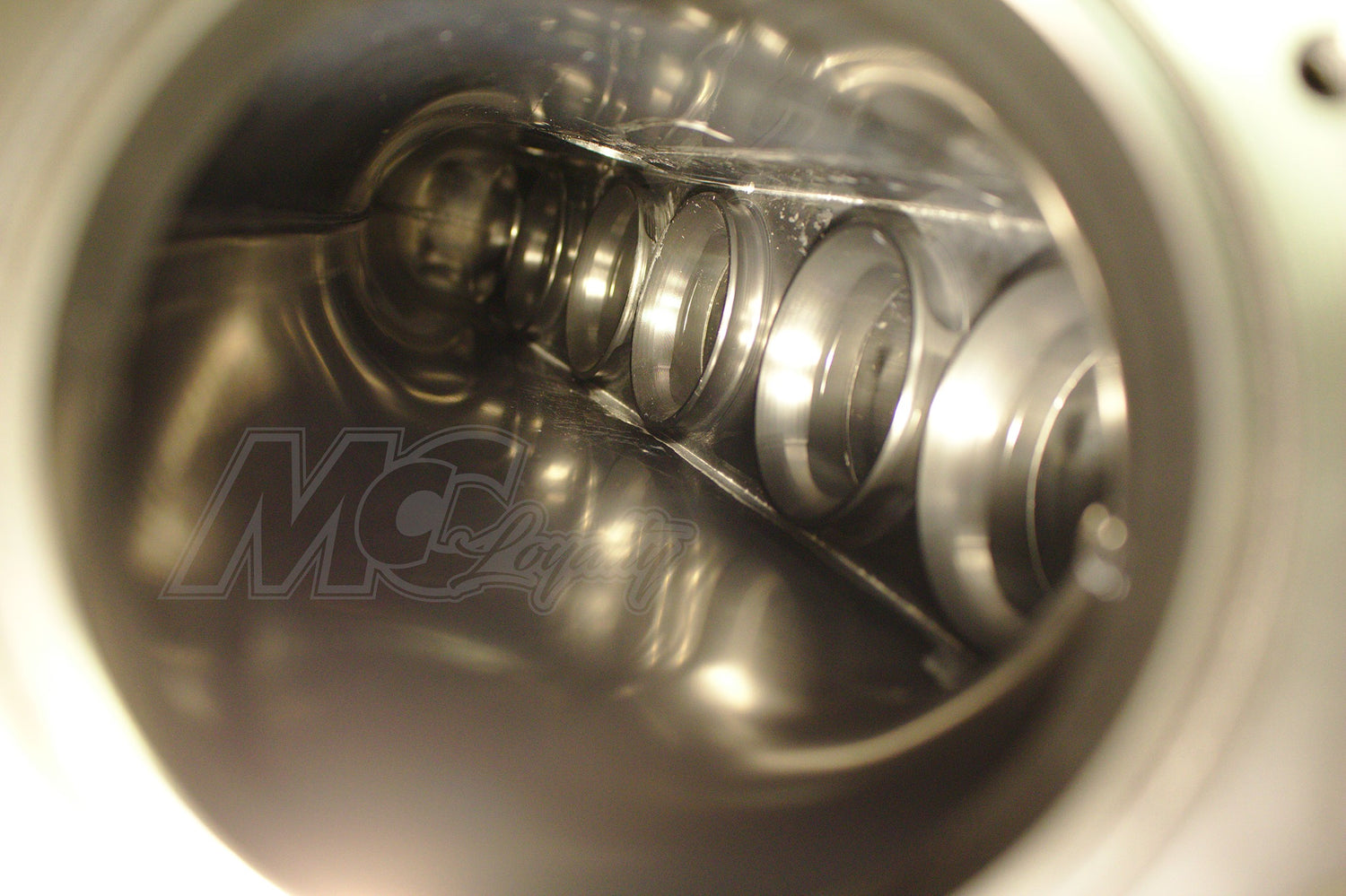

Velocity Stacks
Optional Upgrade (+$95)
Effectively lengthens intake runners without taking space from engine bay

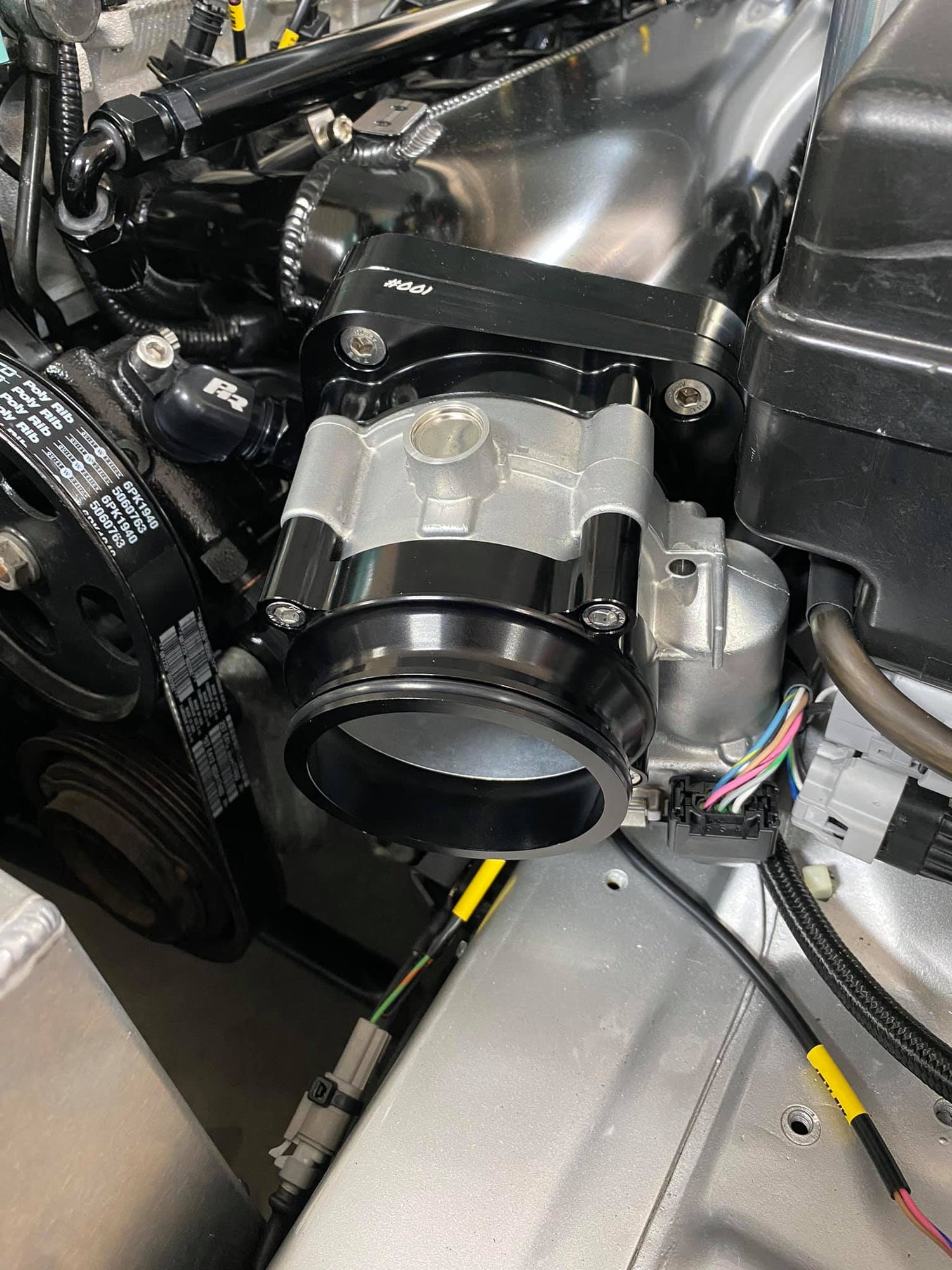

Drive By Wire Adapter
Upgrade from the cable throttle body and purchase your manifold with a drive by wire adapter to run an 82mm Bosch Motorsports electronic throttle body (PN: 280750473)

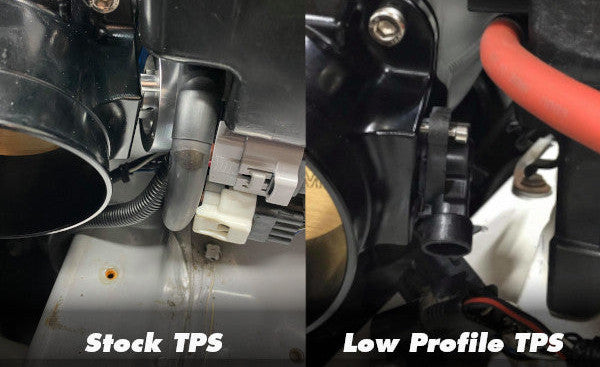

Low Profile TPS Sensor (Optional Upgrade)

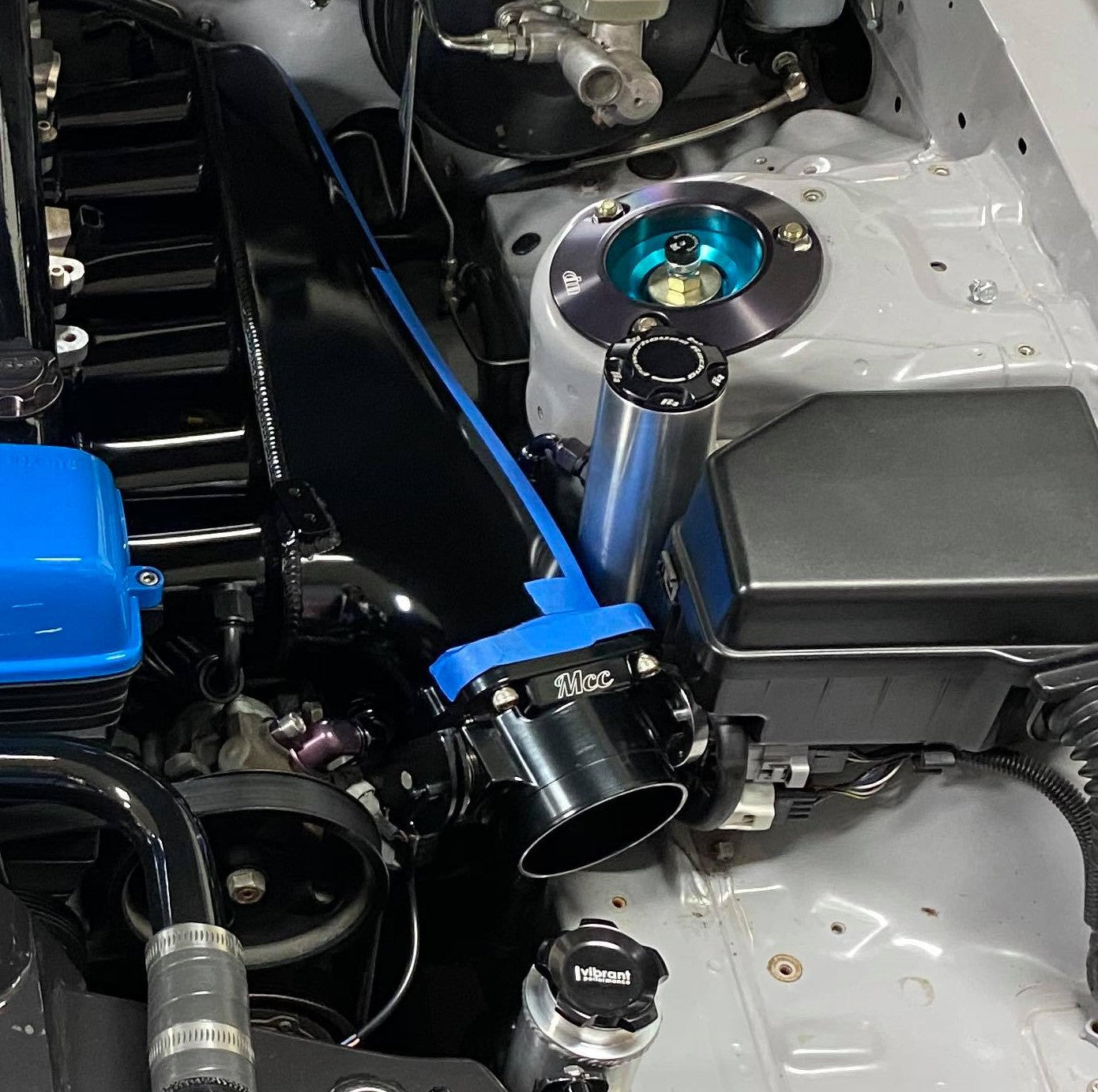

Our low profile TPS sensors work great at providing a bit extra clearance where its needed. This allows users with MKIV Supras and Sc300's to run one of these manifolds with plenty of clearance between the fuse-box.
INSTALATION INFORMATION

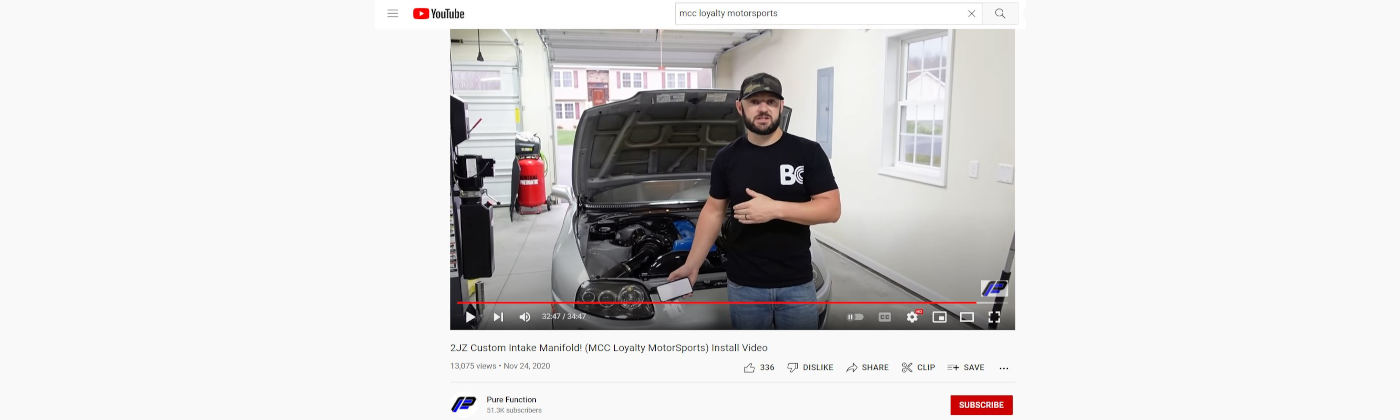

Full start to finish installation video brought to you by Ryan Scott of Pure Function
TRUSTED BY THE COMMUNITY
To deliver reliable products that even some of the most demanding customers can rely on. Some of our competitive customers are pushing well over 1000hp through these manifolds with boost levels around 50PSI without issue.
In Stock Manifolds
-
Sale
2JZ-GE Intake Kit
Regular price From $450.00 USDRegular priceUnit price / per$575.00 USDSale price From $450.00 USDSale -
Sale
2JZ-GTE Intake Kit
Regular price From $450.00 USDRegular priceUnit price / per$575.00 USDSale price From $450.00 USDSale -
Sale
1JZ Intake Kit
Regular price From $450.00 USDRegular priceUnit price / per$575.00 USDSale price From $450.00 USDSale
Accessories
-
Drive By Wire Adapter
Regular price $135.00 USDRegular priceUnit price / per -
Sold out
Bosch 82mm Electronic Throttle body
Regular price $180.00 USDRegular priceUnit price / perSold out -
90mm Cable Driven Throttle Body
Regular price $125.00 USDRegular priceUnit price / per -
Low Profile Throttle position sensor (TPS)
Regular price $45.00 USDRegular priceUnit price / per
