McC Loyalty Motorsports

2JZ-GE Intake Kit

2JZ-GE Intake Kit

Regular price $450.00 USD
Regular price Sale price $450.00 USD
Sale Sold out
Shipping calculated at checkout.
Throttle Body
Plenum Upgrades
View full details
  • ALL of our Intake Manifold Kits are sold with a 1 year warranty!

    We want our customers to be confident in their purchases, and we are willing to go above and beyond to prove that we stand behind what we sell. We are dedicated to customer service and offer a 1-year warranty with all of our intake manifold kits. If you have any issues with your setup, please contact us, and we will either get you replacement parts or your money back.
    This Covers:

    • Intake plenum welds
    • Throttle body defects
    • Fuel rail Issues
    • Much more

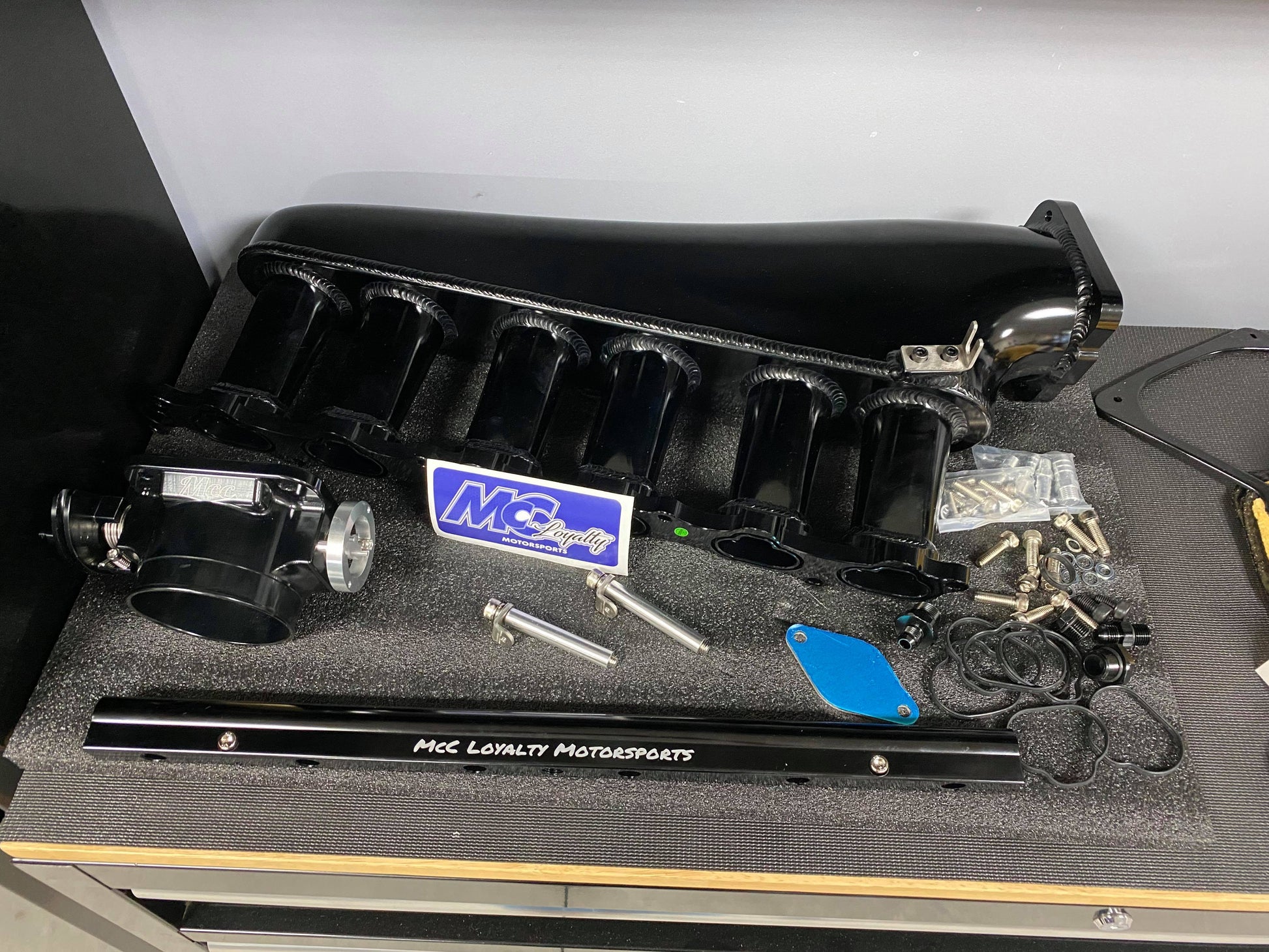

  • Included Parts:

    Aluminum Sheet Metal Intake manifold

    • Billet CNC machined flanges with O-ring grooves
    • Idle air control valve and vacuum flanges welded to underside of manifold
    • Uses OEM IACV (optional block-off plate included)
    • 3X Vacuum ports

    Anodized Aluminum Fuel Rail

    • E85 safe
    • 1000+ HP capable
    • Can be run with dual feed center return, or can install included optional center return block-off plug
    • Broached and tapped for -8 ORB fittings


    • Manifold to head mounting hardware and O-rings
    • Throttle body to manifold mounting hardware and O-rings
    • 2x -6 AN fuel rail feed fittings
    • 1x -6 AN return fitting
    • 1x center return block off fitting (Installation optional)
    • Fuel rail to manifold mounting hardware
    • Throttle cable L-bracket and fasteners (NO CABLE INCLUDED)
    • Optional IACV block-off
  • Installation/Compatibility Note:

    Please ensure you have read the Installation notes on our intake manifold collection page.

    Nearly all installations require:

    • Battery relocation
    • 14.14.60mm Injectors
    • Relocation of the power-steering tank
    • Modification to factory feed and return fuel lines
    • Appropriate ECU/Wiring set up for the drive by wire throttle body and low profile TPS applications

90mm Cable Driven Throttle Body (+$50)

  • CNC machined, anodized aluminum construction
  •  O-ring gasket sealing to manifold
  • 3.5" size Intercooler coupler required
  • Toyota TPS adapter for counter-clockwise Toyota TPS (89452-22080)

Low Profile Throttle Position Sensor (+$35)

  • TPS sensor and a wiring pigtail
  • Allows you to unbolt the TPS adapter on the 90mm Cable driven throttle body
  • Greatly improves clearance between fuse box on MKIV & Sc300
  • TPS Calibration via ECU required (Will not work with stock ECU)


Bosch Drive By Wire Adapter (+$95)

  • CNC machined, anodized 6061 Aluminum
  • O-ring grooved for leakproof performance
  • Angled design: can install in multiple orientations to optimize fitment
  • Bosch 82MM Motorsport electronic throttle body (PN: 28075047), wiring and pedal setup not included

Bosch 82mm Electronic Throttle Body (+$180)

  • PN: 28075047
  • Genuine Bosch product
  • Electronic throttle body used with our drive by wire adapter

Plenum Upgrades

Velocity Stacks (+$95)

  • Effectively lengthens intake runners without taking space from engine bay
  • Similar designs found to increase mass flow in CFD studies

12 Injector Setup (+$145)

  • Two injector bosses per runner
  • 12 injector rail included
